CONSEC vs Husqvarna Core Drill: Which Fits Your Job?

Start your CONSEC vs Husqvarna core drill comparison with the work you need to complete: hole diameter, drilling depth, material, and the number of holes required. For contractors buying in India, you should also consider whether the complete drilling setup suits the job site and who will provide spare parts and service support.

This guide compares specific models and working configurations using CONSEC's English-language product information and Husqvarna's India listings, reviewed on 18 September 2026. It focuses primarily on stand-mounted drilling, while also covering other options where limited space or access to mains power affects the choice.

CONSEC vs Husqvarna: The Short Answer

CONSEC, whose manufacturing operations are handled by HAKKEN, offers drill heads that can be combined with compatible pole bases and, on supported models, optional automatic feed equipment. Husqvarna offers both complete motor-and-stand systems and separate drill motors, including models with electronic load feedback and starting controls.

Start with the drilling capacity and complete setup you need. In the 250 mm class, the CONSEC SPZ-253U2i and Husqvarna DMS 240 are both worth investigating. For larger diameters, the CONSEC SPE-400U3x and Husqvarna DM 430 offer different capacity limits and configurations. Neither comparison indicates that one brand is better across all applications.

CONSEC vs Husqvarna at a Glance

The differences below can help you narrow down the options. Treat each feature as a model-specific capability rather than something included with every drill from the same brand.

Which Models Should You Compare?

Group potential models by the holes they need to produce, then compare equivalent working packages. A drill head without a base cannot be meaningfully compared with a complete drilling rig on purchase price or weight alone.

Around 250 mm: SPZ-253U2i and DMS 240

CONSEC SPZ-253U2i

Source: CONSEC Official Website
(https://www.consec.co.jp/article_source/data/en_product/detail/116.html)

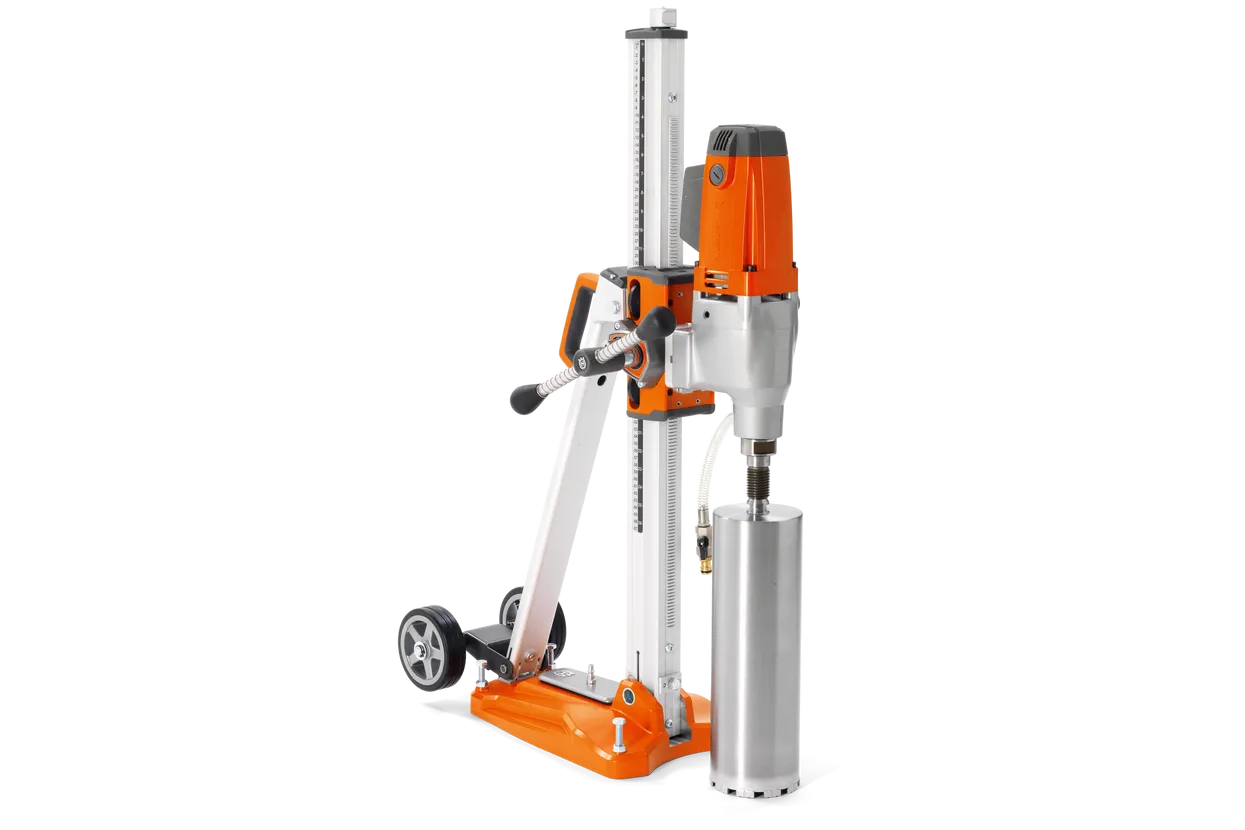

Husqvarna DMS 240

Source: Husqvarna Official Website
(https://www.husqvarnaconstruction.com/us/concrete-core-drills/dms240/)

The SPZ-253U2i is a 230 V drill head with a maximum bit diameter of 254 mm. The DMS 240 India listing specifies a 220–240 V, single-phase, 50 Hz motor-and-stand system with a maximum diameter of 250 mm. Their capacity limits are close enough to make both worth considering for similar work, but their supplied configurations differ.

These weight figures do not mean that one complete rig weighs half as much as the other. Ask each supplier for the assembled weight and transport dimensions of the complete proposed package.

Around 400 mm: SPE-400U3x and DM 430

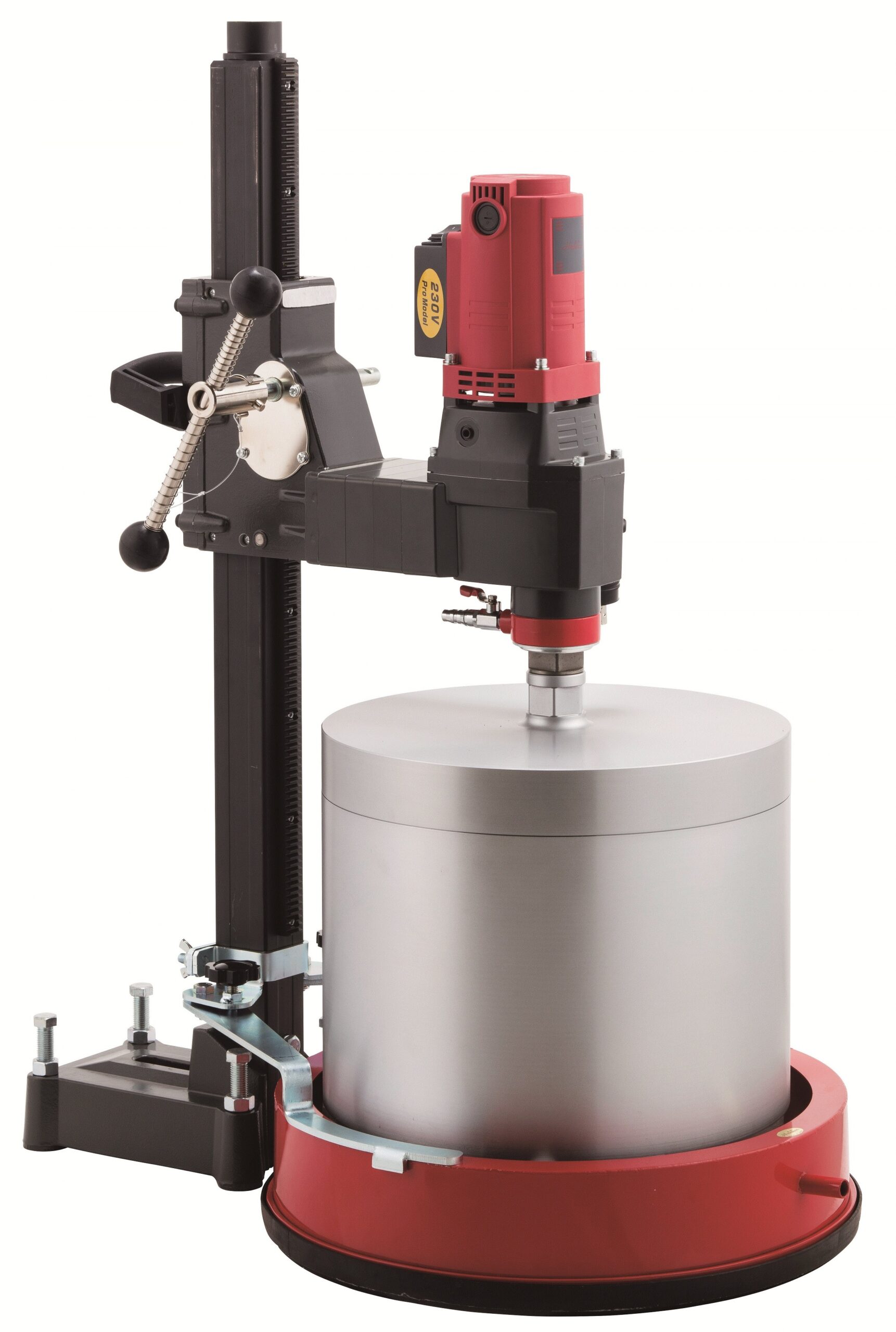

CONSEC SPE-400U3x

Source: CONSEC Official Website
(https://www.consec.co.jp/article_source/data/en_product/detail/167.html)

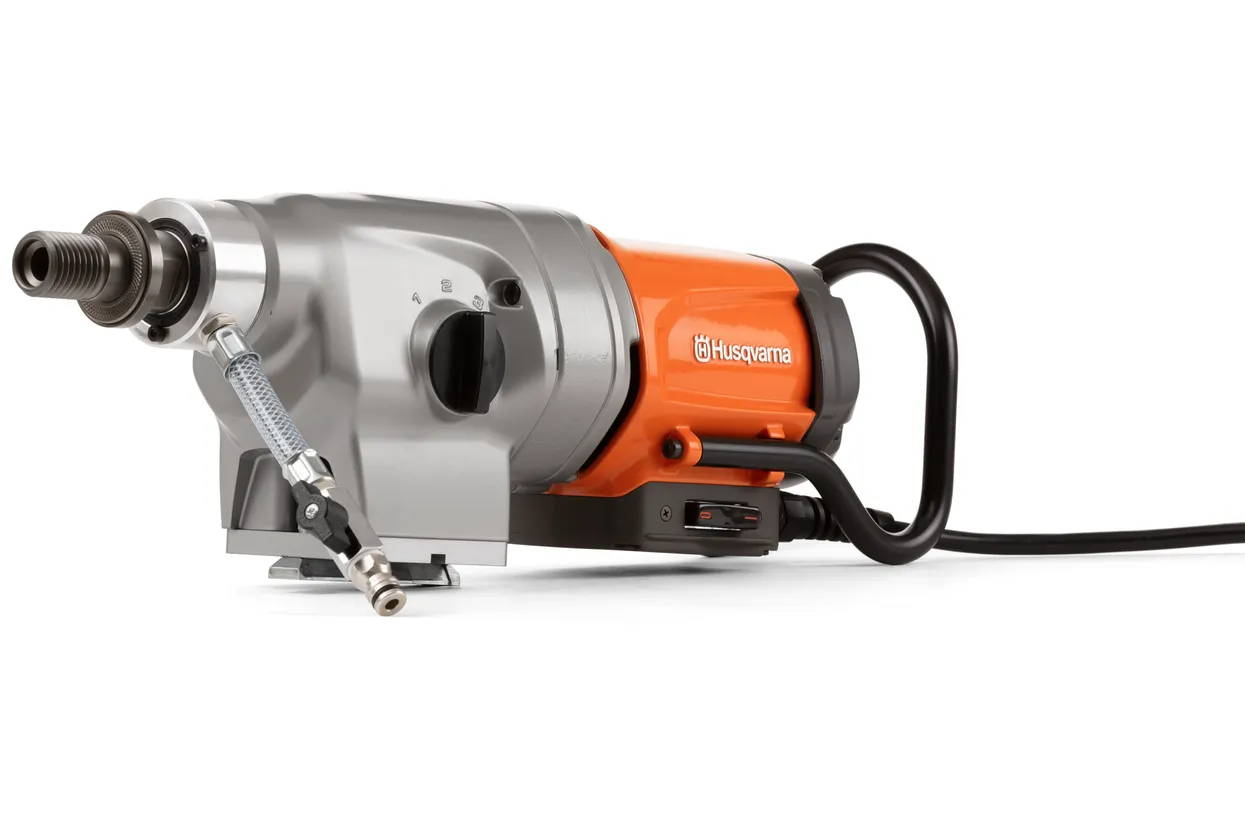

Husqvarna DM 430

Source: Husqvarna Official Website
(https://www.husqvarnaconstruction.com/us/concrete-core-drills/dm430/)

The CONSEC SPE-400U3x has a maximum bit diameter of 406 mm, while Husqvarna lists the DM 430 for diameters from 100–450 mm. If your job requires 450 mm holes, the SPE-400U3x falls outside its published capacity. You would need to consider a different CONSEC model for a like-for-like comparison.

The SPE-400U3x is listed at 230 V, with three no-load speeds and a drill-head weight of 12.4 kg. Its carriage and pole base are supplied separately, and diameters above 370 mm require the specified spacer. Confirm the required stand, mounting hardware, and working clearance for both candidates before comparing quotations.

When Space or Power Access Changes the Shortlist

CONSEC's SPJP-063C is a dedicated narrow-space model with a maximum bit diameter of 160 mm. Husqvarna's wider range includes the battery-powered DM 1 PACE, which its Australian website lists for stand-mounted drilling up to 400 mm. These products illustrate different solutions for different site constraints; they are not direct equivalents.

For restricted-access work, check the complete installed dimensions. If cordless operation is essential, confirm availability in India, battery and charger requirements, and suitability for your planned hole sizes before adding a model listed on an overseas website to your purchase shortlist.

Key Differences That Matter on Site

A useful demonstration should reflect your typical hole diameter, depth, and material. A machine capable of completing an occasional large hole may not be the most practical option for a day's work dominated by smaller penetrations.

Drilling Diameter, Material and Speed Range

Check the manufacturer's operating range for the proposed bit and drilling method. Maximum diameter alone does not indicate drilling speed, bit life, or performance through reinforcement. For the stand-mounted wet-drilling setups discussed here, include the specified water supply and slurry collection equipment in your assessment.

Also distinguish rated input power from maximum output. CONSEC publishes maximum output for the SPE-400U3x, while Husqvarna publishes rated input power for models such as the DM 400. These figures measure different things and cannot be used on their own to determine which machine drills faster.

Power Supply and Regional Specifications

Order according to the exact electrical variant. CONSEC's international range includes different voltage versions, while Husqvarna product pages may list market-specific variants. Ask the supplier to specify the voltage, frequency, phase, current requirements, and supplied electrical connection in the quotation.

Match these requirements against the power available at the job site and the manufacturer's instructions. A model name or a photograph showing a familiar plug is not enough to confirm electrical compatibility.

Automatic Feed, Load Feedback and Starting Controls

Automatic feed and operator feedback serve different purposes. An automatic feed unit moves the drill along its support structure, while a load indicator helps the operator monitor machine loading. Reduced-speed starting helps during the initial cut.

CONSEC supports optional automatic feed on compatible drill configurations. Husqvarna's DM 400 lists an LED load indicator, Elgard overload warning, and Smart Start. Husqvarna also offers an AD 10 automatic feed system, but its regional product page specifies particular compatible equipment. Do not assume that it can be used with the DM 400 or DM 430.

Connectivity also requires a variant check. The DM 430 India page describes Embedded Connectivity, while the selected article is labelled “Without Connectivity”. Confirm the feature set of the exact unit included in the quotation.

Stand Setup, Clearance and Bit Connections

Check the assembled footprint, feed travel, handle clearance, and the space required to remove the core. Ask whether the proposed mounting arrangement is suitable for the drilling direction and mounting surface, in accordance with the manufacturer's instructions.

A matching spindle thread alone does not confirm full compatibility. Bit diameter, operating speed, drilling method, and any approved adapters must also be considered. Similarly, an existing stand should only be reused after confirming the motor mount, carriage interface, and rated capacity.

What to Check Before Buying in India

Local support becomes an important part of the purchase decision when equipment downtime can delay the next job. Obtain written supply and service details for each candidate rather than relying on a brand's international presence alone.

• Exact model, article number, and electrical specification.
• Whether the complete package is stocked locally or imported to order.
• Delivery times for the machine, compatible bits, and replacement parts.
• Where repairs are carried out and how technical support is provided.
• Warranty terms applicable to the quoted unit and purchasing route.
• Availability of demonstrations and operator familiarisation.

Husqvarna's India listings provide dealer and quotation routes. For CONSEC, confirm the appropriate purchasing and support route for the selected export model. A product listing alone does not confirm current stock availability in India or expected repair turnaround times.

Compare the Cost of a Complete Drilling Setup

Compare the cost of a ready-to-work package. A lower machine-only quotation may exclude components that another supplier includes. Request itemised quotations in INR, with taxes, delivery charges, and any import-related costs clearly identified.

If you compare cost per hole, base the calculation on a trial using representative material and include setup and cleanup time. Purchase price alone does not determine which option will cost less over the life of the equipment.

Frequently Asked Questions

Is HAKKEN the Same as CONSEC?

HAKKEN is associated with CONSEC's manufacturing operations and is identified on the official website as the Hakken C&D Solutions Business Unit. When comparing products listed under either name, check the complete model designation and specification.

Do Both Brands Offer Automatic Core Drilling?

Both manufacturers publish automatic feed options, but compatibility depends on the complete configuration. CONSEC identifies supported drill configurations, while Husqvarna's AD 10 documentation lists compatible equipment. Confirm the exact combination and its availability in India with the supplier.

Can I Reuse My Existing Core Bits and Drill Stand?

Possibly, subject to confirmed component compatibility. Check the bit connection, permitted diameter, and operating conditions, as well as the stand's mounting interface and rated capacity. Ask the supplier to identify any approved adapters or replacement components required.

What Should a Complete Core Drill Quote Include?

Ask for an itemised package with the exact model specification, including the drill, support structure, mounting hardware, required bits, water and slurry equipment, and any optional feed unit. The quotation should also state taxes, delivery charges, warranty terms, and service arrangements.

Compare More Diamond Core Drill Brands and Models

Your shortlist may change once you compare complete drilling setups. Our main comparison page brings together models from Hakken (CONSEC), Hilti, and CAYKEN, with product specifications and features to help you compare the available options.

Compare drilling capacity, power requirements, weight, and available features against the requirements of your next project, then confirm the selected configuration and availability with the supplier.

Reference

Manufacturer information reviewed on 18 September 2026. CONSEC specifications refer to the linked international models; Husqvarna India pages are used where available. The AD 10 and DM 1 PACE references describe products listed on other regional websites and do not confirm availability in India.
